Since the energy-saving advantages of LED light sources, LED products and lower prices, T8 LED Tube has become the market mainstream LED lighting choices, then T8 LED Tube how to replace?

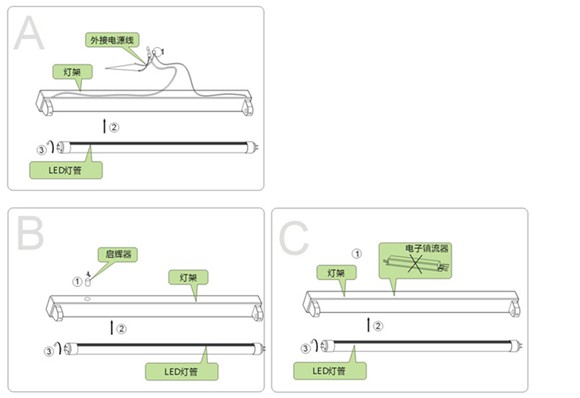

A, press A diagram ① brought directly to the lighthouse is still the power cord and external power cord, no need to distinguish between two zero FireWire, and then A figure ② LED lamps mounted on the press ③ A diagram rotate the tube 90 °, power can be lit.
B, if there is light shelves starter, press B Figure ① take out the starter, and then B will figure ② LED lamp installed, press B Figure ③ the lamp rotate 90 °, turn power to light up.
C, If using the electronic ballasts, first press C Figure ① the ballast two power lines cut, then follow A as shown in Figure ① Connect the power cord, press C Figure ② LED lamps will be installed press C Figure ③ the lamp rotate 90 °, power can be lit.
