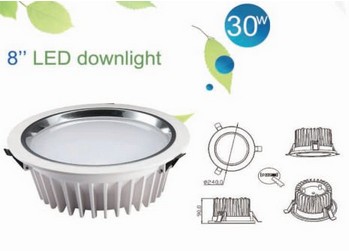

Samsung 5630 SMD 150 degree LED down light

Samsung 5630 SMD 150 degree LED down light Specification:

Power                         35W

Savings                      80% (compared with halogen and incandescent lamp), 50% (compared with CFL)

Luminous flux             2550Lm±5%

Color index                 75

CCT                              2800-7200

Light source                 75 pcs Samsung LED

Detailed specification

Certification                    CE & ROHS certified

Input Voltage                  AC100-240V/50-60Hz

Dielectric strength         5S @4000VAC, 5mA

Ambient temperature    -20°C-40°C

Life (hrs) span                     30,000

Beam angle                         120°

Lighting efficiency                 71Lm/W

Luminous intensity               780 lux@1M,

Net weight                                2200g g

Samsung 5630 SMD 150 degree LED down light Application

The project integrates dimmable LEDs into a recessed downlight to achieve an overall system that has a high lumen output while providing continuous dimming control and low power consumption. The LED downlight's optical design yields more productive beam lumens and good cutoff.
